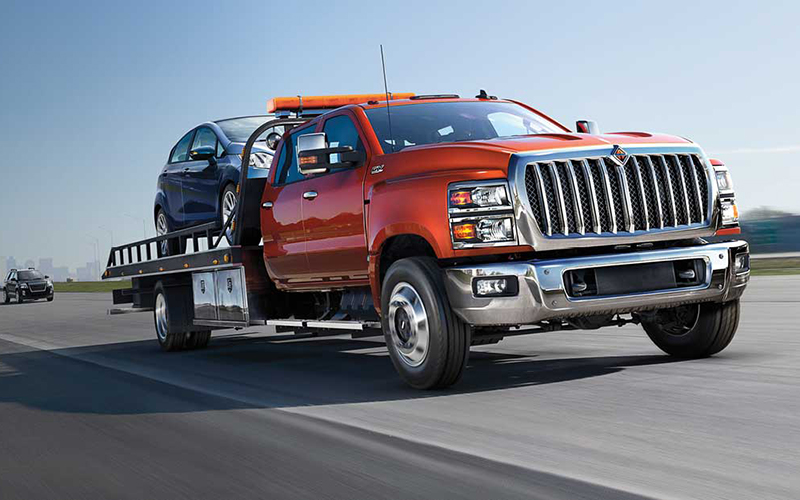

International CV™ Series
| Manufacturer: International |
Request A Quote
Make & Model
Detailed Specification
MEDIUM DUTY
16,000 - 23,500 lbs.
4X2, 4X4
Classic, Diamond
Day Cab, Crew Cab (no sleepers)
141 - 243"
International® 6.6, V8 Turbocharged Diesel Engine, 700 lb. – ft. torque @1600 RPM
Horizontal, Frame Mounted, Right Side Under Cab Tailpipe WB greater than 141”: Straight tailpipe, exits right or available left side ahead of rear axle 141" WB: Over rear axle, exits behind rear axle
High Strength, Low Alloy Steel 50,000 PSI
Dana Spicer: 6,000 - 8,000 lbs.
Taper Leaf Shackle with Shock Absorbers: 6,000 - 7,000 lbs., Parabolic Taperleaf with Shock Absorbers: 7,500 - 8,000 lbs.
Single Rear Axle Dana: Single Reduction: 10,000 – 15,500 lbs.
Spring, Vari-Rate: 11,000 - 15,500 lbs., Air, International® Ride Optimized Suspension (IROS): 12,000 - 15,500 lbs. (4x2 only)
Allison 6-speed: 1700, 1750, 2700 Series
Denso SC2 Brush Type 150 Amps, Denso SC6 Brush Type 220 Amps, Denso SC6 Dual Brush Type 150 and 220 Amps
(2) Batteries:
1100 – 1300 CCA
(3) Batteries:
2250 CCA
Hydromax with Traction Control and Four Channel ABS
Single, Rectangular 25 Gallon, Mounted Between Rails Forward of Rear Axle, Single, Rectangular 40 Gallon, Mounted between Rails Behind Rear Axle, Dual, Rectangular 25 Gallon and 40 Gallon
Goodyear Continental
Description
FROM START-UP TO SCALE-UP INTRODUCING THE INTERNATIONAL® CV™ SERIES—THE COMMERCIAL-GRADE TRUCK THAT MAKES WORK ANYTHING BUT.
Resilient across all seasons, the CV Series is built to help your business flourish.
